| Luogo di origine: | Cina |
| Marca: | Ziitek |
| Certificazione: | UL and RoHs |
| Numero di modello: | TIF100-20-10E |
| Documento: | TIF100-20-10E_Data Sheet.pdf |
| Quantità di ordine minimo: | 1000 pezzi |
|---|---|
| Prezzo: | 0.1-10 USD/PCS |
| Imballaggi particolari: | Cartone da 24*13*12 cm |
| Tempi di consegna: | 3-8 giorni lavorativi |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 100.000 pezzi/mese |

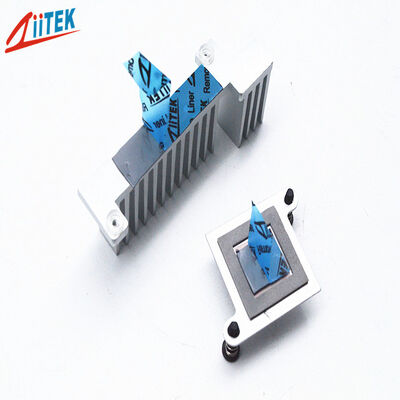

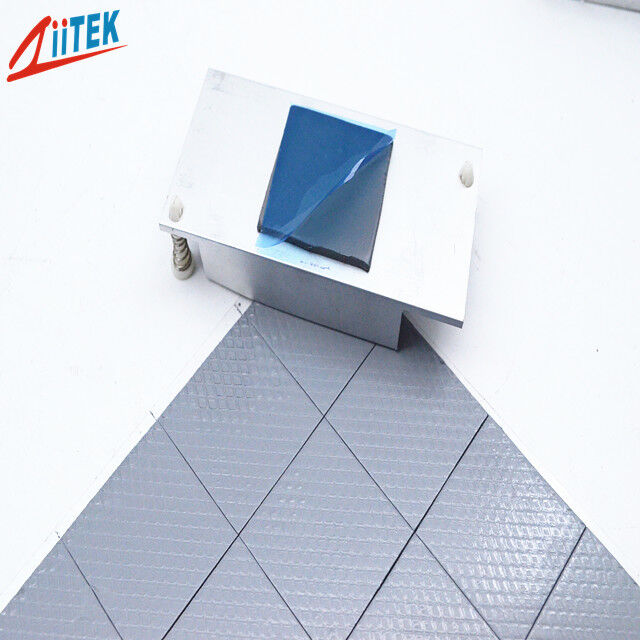

| Nome dei prodotti: | Riempitore di gap termico progettato per fornire una conduttività termica di 2,0 W/mK per applicazio | conduttivo termico: | 2,0 W/mK |
|---|---|---|---|
| Durezza: | 65/35 Shore 00 | campione: | Campione gratuito |
| Colore: | Grigio | Spessore: | 0,010 "(0,25 mm) ~ 0,200" (5,0 mm) |
| Densità: | 20,7 g/cm3 | Parole chiave: | Riempitivo di gap termico |
| Costruzione: | Elastomero siliconico caricato con ceramica | Applicazione: | Applicazione di raffreddamento dell'elettronica |
Products description
The TIF®100-15-01F Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fillinterfacegaps,transfer heat,and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation,insulation,
and mechanical stability.
| Typical Properties of TIF®100-20-10E Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.7 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness (Shore 00) | 65 | 35 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 5.0 | ASTM D150 | |
| Volume Resistivity(Ohm-meter) | >1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity(W/m-K) | 2.0 | ASTM D5470 | |
| 2.0 | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
![]()
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
![]()
