Name: High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: Z-Foam800-10SC
Price: 4.10 USD
Availability: InStock

Casa Prodotti Strato della schiuma del silicone

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle

Dettagli:

Luogo di origine:	Cina
Marca:	Ziitek
Certificazione:	ROHS
Numero di modello:	Z-Foam800-10SC

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000 pezzi
Prezzo:	0.1-10USD/pcs
Imballaggi particolari:	Cartone da 241312 cm
Tempi di consegna:	3-8 giorni lavorativi
Termini di pagamento:	T/T
Capacità di alimentazione:	10000000pcs/mese

Contatto

Descrizione di prodotto dettagliata

Nome dei prodotti:	Materiale schiumogeno in silicone eccellente assorbimento acustico resistente alle alte temperature	Parola chiave:	Schiuma di silicone
Colore:	grigio	Densità (g/m³）:	0.37
Impostazione compressione @100℃（%）:	＜5.0	Struttura e componente:	Gomma siliconica
Applicazione:	Veicolo elettrico	Intervallo di temperatura ((°C):	-55~200
Resistenza alla trazione (MPA):	≥0.3

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Products description

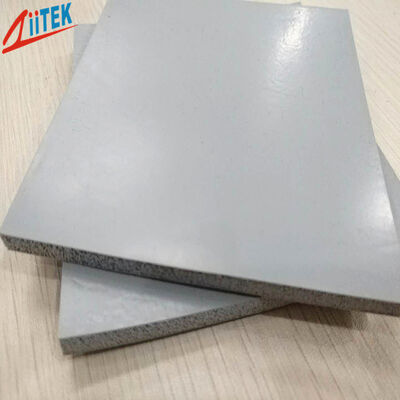

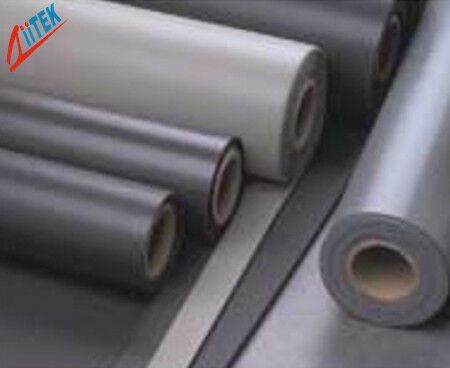

Z-Foam^®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.

Features

> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> High oxygen index, low smoke,low toxicity
> Excellent performance under extreme temperatures
> Excellent resistance to compression set and creep

Application

> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets

Typical Properties of Z-Foam^®800-10SC Series
Properties	Value	Test method
Color	Gray	Visual
Structure & Component	Silicone rubber	******
Density (g/cm³)	0.37	ASTM D1056
Compression Set @100℃(%))	＜5.0	ASTM D1056
Tensile Strength (MPa)	≥0.3	ASTM D412
Elongation At Break (%)	≥90	ASTM D570
Water Absorption (%)	≤5.0	ASTM D412
Breakdown Voltage (kV/mm)	≥2.5	ASTM D149
Volume Resistivity (Ω·cm)	≥1.0 x 10¹⁴	ASTM D257
Temperature Range (℃))	-55~200	******
Flame Rating	V-0	UL94 (E331100)

Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam^® Series can be die-cut into different shapes provided.

For More different thickness,please contact us.

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle 0

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
