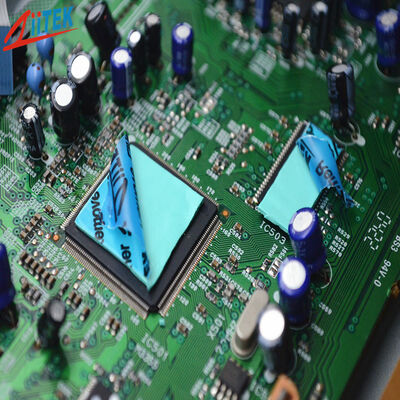

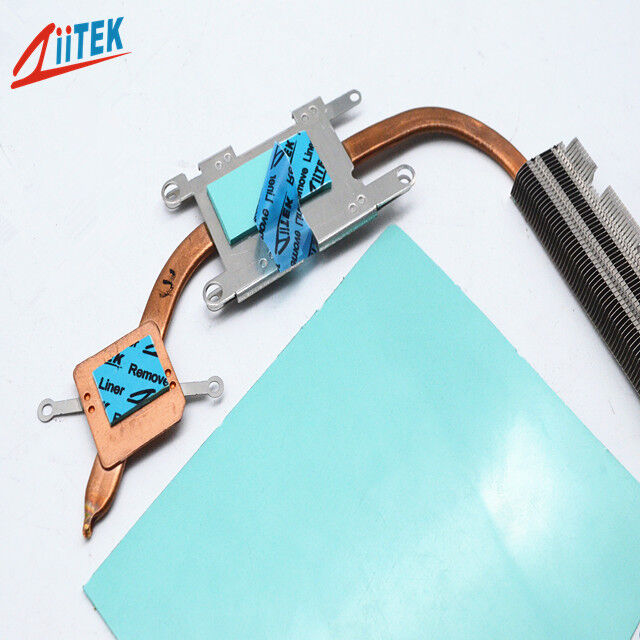

Thermal Conductive Pad TIF100-20-18S Series with Excellent Thermal Conductivity and Natural Tackiness for Heat Management
TIF®100-20-18S Series Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Key Features
Good thermal conductive
Moldability for complex parts
Soft and compressible for low stress applications
Naturally tacky needing no further adhesive coating
Available in varies thicknesses
Broad range of hardnesses available
Applications
Computer / communication equipment
Laptop / tablet / PC server
New energy power battery / vehicle equipment
Switching power supply / UPS
Video / security equipment
Any heating element and radiator
Home appliance industry
Power module
Wearable device
Solar photovoltaic panel
Motherboard chip
Radiator
AI Processors AI Servers
Technical Specifications of TIF®100-20-18S Series
| Property |
Value |
Test Method |
| Color |
Green |
Visual |
| Construction & Composition |
Ceramic filled silicone elastomer |
- |
| Density (g/cm³) |
2.5 |
ASTM D792 |
| Thickness Range (inch/mm) |
0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) |
65 | 45 |
ASTM 2240 |
| Continuous Use Temp |
-40 to 200℃ |
- |
| Breakdown Voltage (V/mm) |
≥ 5500 |
ASTM D149 |
| Dielectric Constant@1MHz |
4.7 |
ASTM D150 |
| Volume Resistivity(Ohm-meter) |
＞1.0×10¹² |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
2.0 |
ASTM D5470 / ISO22007 |
| Fire Rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging & Lead Time
Packaging Details:
• PET film or foam for protection
• Paper card to separate each layer
• Export carton inside and outside
• Customized to meet customer requirements
Lead Time: Quantity: 5000 pieces - To be negotiated
Frequently Asked Questions
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
About Ziitek
Dongguan Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
