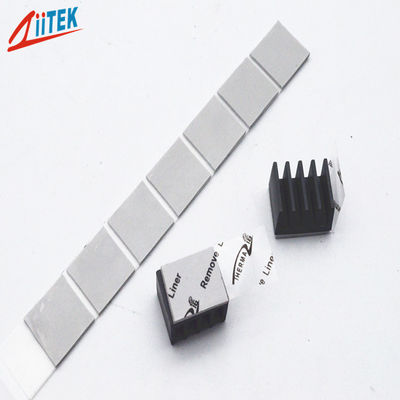

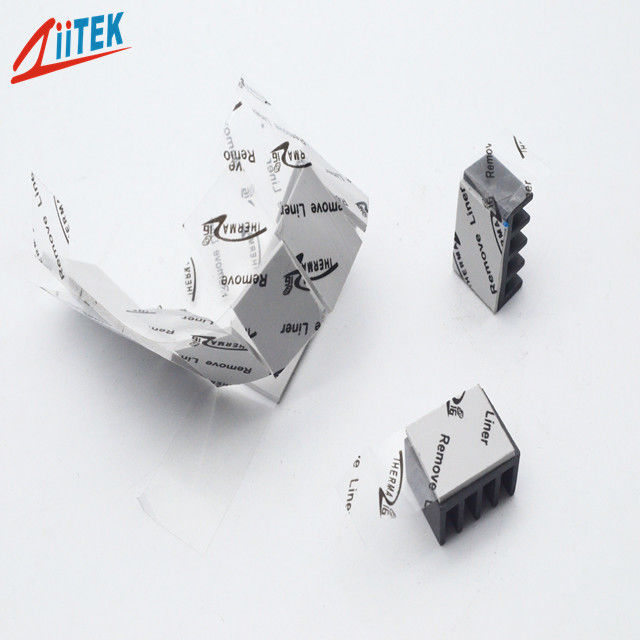

Name: Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF700PES
Price: 4.10 USD
Availability: InStock

Casa Prodotti cuscinetto del termale del silicone

Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server

Dettagli:

Luogo di origine:	Cina
Marca:	Ziitek
Certificazione:	UL & RoHS
Numero di modello:	TIF700PES

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000 pezzi
Prezzo:	0.1-10 USD/PCS
Imballaggi particolari:	Scatole da 242312 cm
Tempi di consegna:	3-5 giorni lavorativi
Termini di pagamento:	T/T
Capacità di alimentazione:	1000000 pezzi/mese

Contatto

Descrizione di prodotto dettagliata

Nome dei prodotti:	Cuscinetto termico in silicone Foglio di dissipazione del calore ad alta conduttività da 7,5 W per s	Costruzione:	Elastomero in silicone pieno di ceramica
Intervallo di spessore:	0,5-5,0 mmT	Parole chiave:	Cuscinetto termico
Costante dielettrica @1MHz:	7,6	Colore:	Grigio
Tensione di rottura (V/mm)):	≥5500	Valutazione del fuoco:	UL94 V-0
Applicazione:	Server AI Processori AI	Conducibilità termica:	7.5W/m-K

Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®700PES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and highest heat flux electronic components.

Features:

> High thermal conductivity: 7.5W/mK

> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> High insulation performance

Applications

> AI Servers

> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

Typical Properties of TIF^®700PES Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.4		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.5)	0.040~0.200 (1.0~5.0)	ASTM D374
Hardness (Shore OO)	60	10	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.2 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	7.5 W/m-K		ASTM D5470
	7.5 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.020"(0.5 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server 0

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
