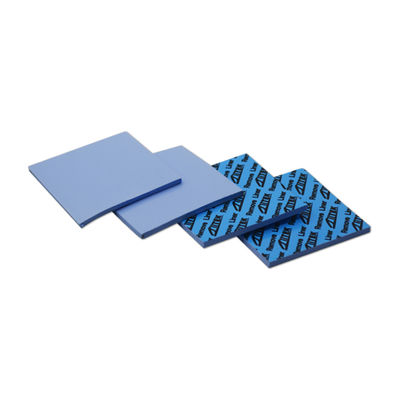

High Quality Ultra Soft High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element

High Quality Ultra Soft High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element

Dettagli:
Luogo di origine: Cina
Marca: Ziitek
Certificazione: UL & RoHS
Numero di modello: Serie TIF100-05S
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000pcs
Prezzo: 0.1-10 USD/PCS
Imballaggi particolari: 24*13*12 cm cartoni
Tempi di consegna: 3-5 giorni di lavoro
Termini di pagamento: T/t
Capacità di alimentazione: 1000000 pezzi/mese
Contatto
Descrizione di prodotto dettagliata
Nome dei prodotti: Riempitore di gap di raffreddamento del cuscinetto termico in silicone termico ad alta conduttività Applicazione: Elemento isolante premium CPU
Campione: Campione gratuito Colore: Blu
Gamma di spessore: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) Tensione di rottura dielettrica: > 5500 VAC
Valutazione del fuoco: 94 V0 Costante dielettrica: 4.5MHz
Parole chiave: Riempitivo di gap termico Conducibilità termica: 1,5 W/m-K

High Quality Ultra Soft High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element



Company Profile



Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



Ziitek TIF®100-05S Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF100-05S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power



Typical Properties of TIF®100-05S Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

High Quality Ultra Soft High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.





FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.







Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
