Casa Prodotticuscinetto termico del dissipatore di calore

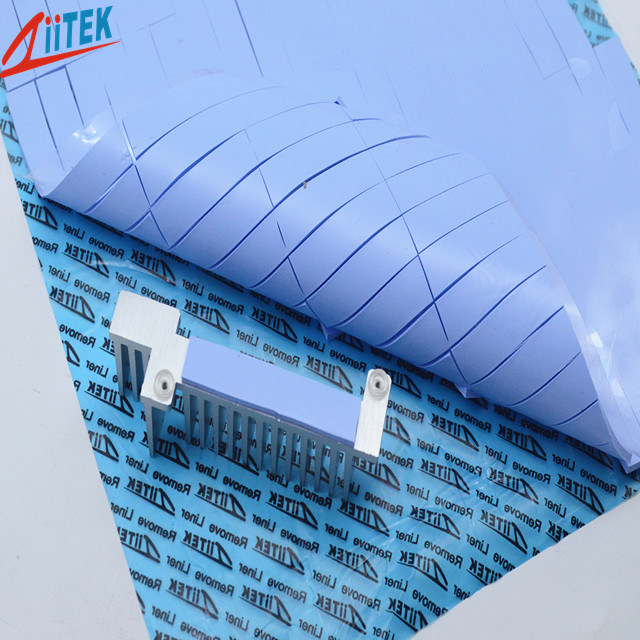

Customized Thermal Conductive Silicon Pad Thermal Conductive Silicone Thermal Heating Pad For Filling Gaps

Customized Thermal Conductive Silicon Pad Thermal Conductive Silicone Thermal Heating Pad For Filling Gaps

Dettagli:
Luogo di origine: Cina
Marca: Ziitek
Certificazione: UL & RoHS
Numero di modello: Serie TIF100-05UF
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000pcs
Prezzo: 0.1-10 USD/PCS
Imballaggi particolari: 24*13*12 cm cartoni
Tempi di consegna: 3-5 giorni di lavoro
Termini di pagamento: T/t
Capacità di alimentazione: 1000000 pezzi/mese
Contatto
Descrizione di prodotto dettagliata
Nome dei prodotti: Cuscinetto riscaldante termico in silicone conduttivo termico personalizzato per riempire gli spazi Conducibilità termica: 1,5 W/m-K
Campione: Campione gratuito Colore: Blu
Gamma di spessore: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) Valutazione del fuoco: 94 V0
Costante dielettrica: 3.9MHz Parole chiave: Pad di silicio conduttivo termico
Tensione di rottura dielettrica: > 5500 VAC Applicazione: per prodotti elettronici che colmano le lacune

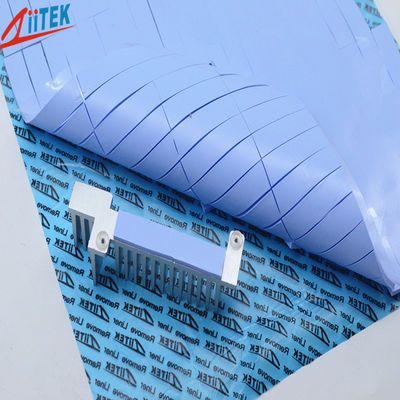

Customized Thermal Conductive Silicon Pad Thermal Conductive Silicone Thermal Heating Pad For Filling Gaps



Company Profile



Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.



Ziitek TIF®100-05UF Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Easy release construction
> Electrically isolating
> High durability




Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF®100-05UF Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 75 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.9 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

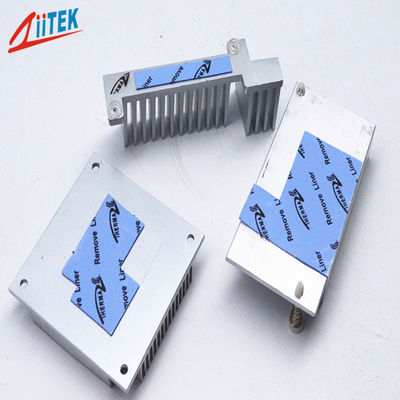

Customized Thermal Conductive Silicon Pad Thermal Conductive Silicone Thermal Heating Pad For Filling Gaps 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
