Name: Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIR300G-A1
Price: 4.10 USD
Availability: InStock

Casa Prodotti Strato termico della grafite

Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet

Dettagli:

Place of Origin:	China
Marca:	Ziitek
Certificazione:	RoHS
Model Number:	TIR300G-A1

Termini di pagamento e spedizione:

Minimum Order Quantity:	1000pcs
Prezzo:	0.1-10USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contatto

Descrizione di prodotto dettagliata

Products Name:	Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet	Hardness:	85 Shore A
keywords:	Thermal Conductive Graphite Sheet	Feature:	Excellent thermal impedance
Thermal conductiivity:	2.0W/m-K	Color:	Black
Density:	1.4g/cc	Thickness:	0.13mm
Application:	Used Between Heat Sinks And External Casings

Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet

Company profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Products introduction

TIR^®300G-A1 Series is a composite themal pad with added graphite,which has excellent thermal conductivity to effectively solve the common problem of thermal interfaces. This material uses a fiberglass-reinforced structure to ensure that it does not lose structural integrity during application. lt is easy to apply to different surfaces and is convenient to install. lt is commonly used between transistors and heat sinks,and between large assembly parts for thermal interface management.

Feature

> Excellent thermal impedance
> Replaces traditional thermal grease

> High reliability
> Easy to apply to surfaces

Application

> Between transistors and heat sinks

> Between mechanical structures

> Between heat sinks and external casings

Typical Properties of TIR^®300G-A1 series
Product Name	TIR^®304G-A1	TIR^®305G-A1	Test Method
Colour	Black		Visual
Reinforcement Carrier	Fiberglass		*****
Thickness range	0.13mm/0.005inch	0.15mm/0.006 inch	ASTM D374
Hardness	85 Shore 00		ASTM D2240
Density	1.4g/cc		ASTM D297
Volume Resistivity(ohm-cm)	10²		ASTM D257
Continuous Use Temperature	-60℃~ 180℃		Ziitek Test Method
Thermal Conductivity(W/mK)	2.0		ASTM D5470
Thermal impedance(℃-in²/W )@30psi	0.66	0.68	ASTM D5470
Thermal impedance(℃-in²/W)@50psi	0.34	0.36	ASTM D5470
180° Peel Strength	1.0N/25mm		ASTM D3330 (Steel,Immediate)

Standard size:
Sheet: 305 mm*305 mm; Roll: 305 mm*75 m.
TIR300G series can be cut and supplied in various shapes and sizes.

For different thicknesses or sizes, please contact our company.

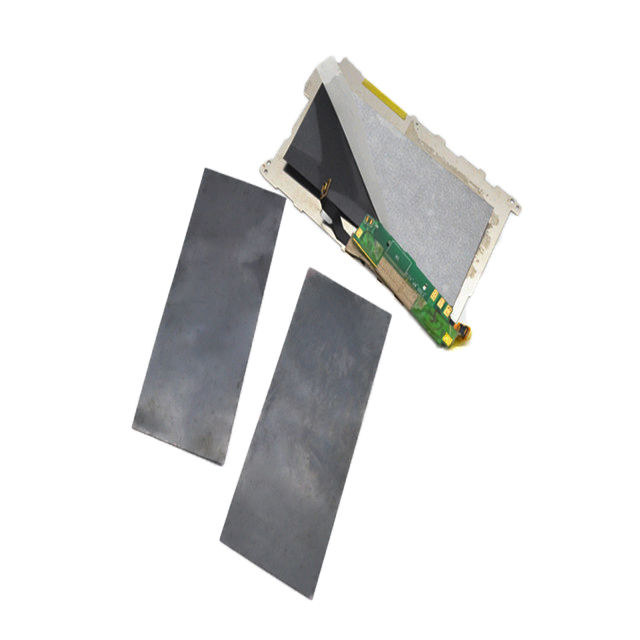

Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet 0

Packaging Details & Lead time

1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
