Name: Customized 2.5W High Temperature Thermal Graphite Pad With Adhesive For heat sinks
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TS-TIR300L-A1
Price: 4.10 USD
Availability: InStock

Casa Prodotti Strato termico della grafite

Customized 2.5W High Temperature Thermal Graphite Pad With Adhesive For heat sinks

Dettagli:

Place of Origin:	China
Marca:	Ziitek
Certificazione:	RoHS
Model Number:	TS-TIR300L-A1

Termini di pagamento e spedizione:

Minimum Order Quantity:	1000pcs
Prezzo:	0.1-10USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contatto

Descrizione di prodotto dettagliata

Products Name:	Customized 2.5W High Temperature Thermal Graphite Pad With Adhesive For Battery	Hardness:	90 Shore A
keywords:	Thermal Graphite Pad	Feature:	Excellent thermal impedance
Thermal conductiivity:	2.5W/m-K	Color:	Black
Thickness:	0.15mm	Density:	1.4g/cc
Application:	Between transistors and heat sinks

Customized 2.5W High Temperature Thermal Graphite Pad With Adhesive For heat sinks

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Products introduction

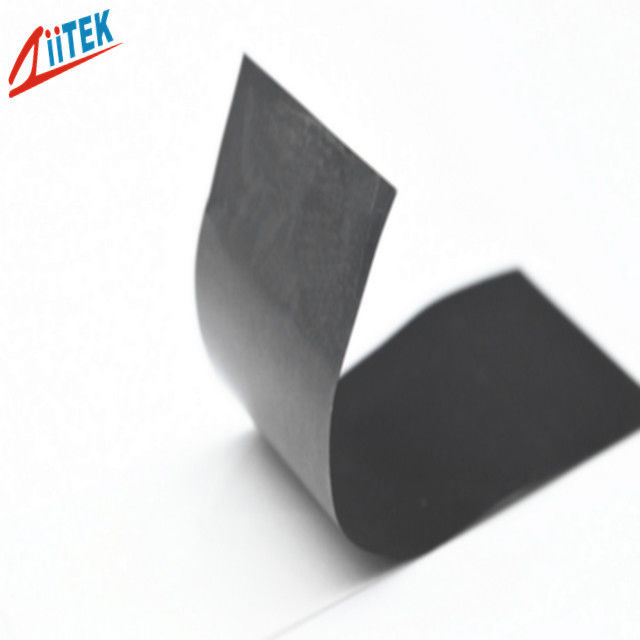

TIR^®300L-A1 Series is a graphite-enhanced composite thermal interface material engineered forhigh thermal conductivity and reliable heat dissipation.Reinforced with an aluminum foil layer,it maintains structural integrity throughout handling and application. The material conforms well to a variety of surfaces, enabling efficient thermal contact and ease of assembly. lt is ideally suited for use between power transistors and heat sinks, as well as in large-areathermal interface applications.

Feature

> Excellent thermal impedance
> Replaces traditional thermal grease

> High reliability
> Easy to apply to surfaces

Application

> Between transistors and heat sinks

> Between mechanical structures

> Between heat sinks and external casings

Typical Properties of TIR^®300L-A1 series
Product Name	TIR^®300L	Test Method
Colour	Black	Visual
Reinforcement Carrier	Aluminum	*****
Thickness range	0.15 mm	ASTM D374
Hardness	90 Shore A	ASTM D2240
Density	1.4g/cc	ASTM D792
Volume Resistivity(ohm-cm)	1*10²	ASTM D257
Continuous Use Temperature	-60℃~ 180℃	Ziitek Test Method
Thermal Conductivity(W/mK)	2.5	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.30	ASTM D5470
Thermal impedance(℃-in²/W)@50psi	0.25	ASTM D5470
180° Peel Strength	1.0N/25mm	ASTM D3330 (Steel,Immediate)

Standard size:
Sheet: 305 mm*305 mm; Roll: 305 mm*75 m.
TIR300L series can be cut and supplied in various shapes and sizes.

For different thicknesses or sizes, please contact our company.
