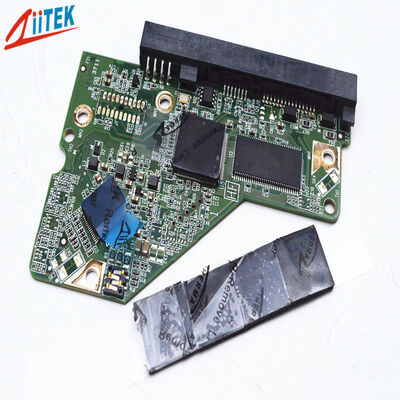

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial

Dettagli:
Luogo di origine: Cina
Marca: Ziitek
Certificazione: UL & RoHS
Numero di modello: TIF100-60-01U
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000 pezzi
Prezzo: 0.1-10 USD/PCS
Imballaggi particolari: Scatole da 24*13*12 cm
Tempi di consegna: 3-5 giorni lavorativi
Termini di pagamento: T/T
Capacità di alimentazione: 1000000 pezzi/mese
Contatto
Descrizione di prodotto dettagliata
Nome dei prodotti: Foglio termicamente conduttivo ultra morbido a base di silicone ad alte prestazioni per prodotti ele Spessore: 0,25-5,0 mmT(0,010"~0,20")
Applicazione: Prodotti elettronici, accumulo di energia, industriale Peso specifico: 3.2 g/cc
Tensione di rottura dielettrica: >5500 VCA Colore: Nero
Parole chiave: Foglio termicamente conduttivo Materiali: Elastomero siliconico caricato con ceramica
Conduttività termica: 6.0W/m-K

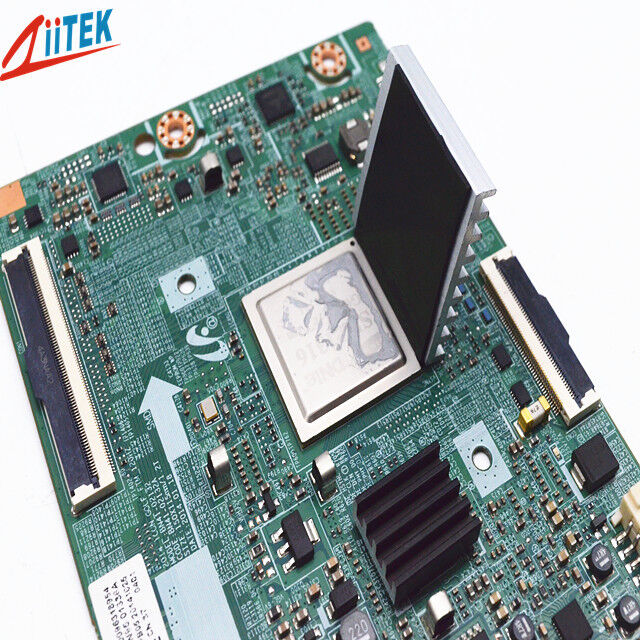

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial



Company profile



Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:



Thermal gap pad



Thermal graphite sheet/film



Thermal double-sided tape



Thermal insulation pad



Thermal grease



Phase change material



Thermal gel



All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL



Products description


The TIF®100-60-01U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> CPU
> Display card
> Mainboard/mother board

> AI Processors AI Servers

> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip



Typical Properties of TIF®100-60-01U Series
Property Value Test method
Color Black Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.2 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 6.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 6.0 W/m-K ASTM D5470
6.0 W/m-K ISO22007

Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200 (5.00 mm) with increments of 0.010 (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


TheTIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
