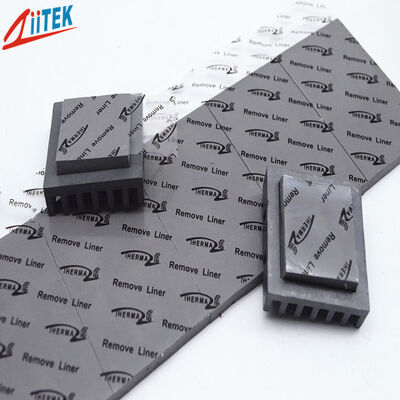

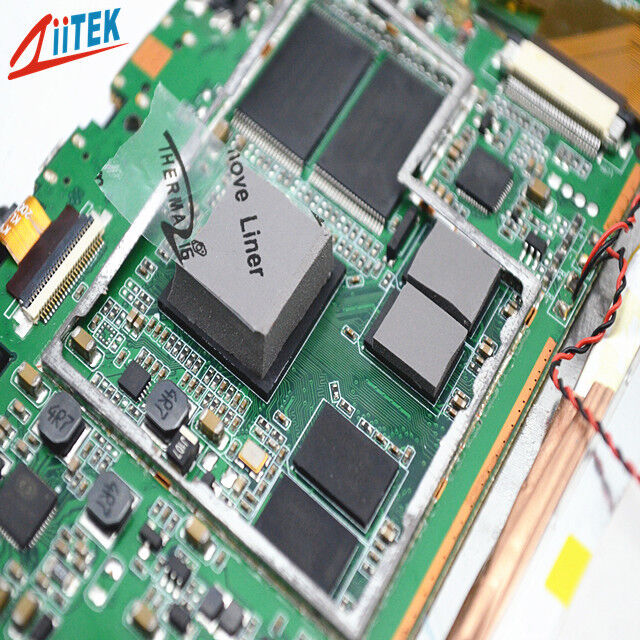

Name: High Performance Thermal Pad Soft Silicone Thermal Cooling Pad For AI Processors Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF500-50-11ES
Price: 4.10 USD
Availability: InStock

Casa Prodotti cuscinetto del termale del silicone

High Performance Thermal Pad Soft Silicone Thermal Cooling Pad For AI Processors Cooling

Dettagli:

Luogo di origine:	Cina
Marca:	Ziitek
Certificazione:	UL & RoHS
Numero di modello:	TIF500-50-11ES

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000 pezzi
Prezzo:	0.1-10 USD/PCS
Imballaggi particolari:	241312 cm cartoni
Tempi di consegna:	3-5 giorni lavorativi
Termini di pagamento:	T/T
Capacità di alimentazione:	1000000 pezzi/mese

Contatto

Descrizione di prodotto dettagliata

Nome dei prodotti:	Cuscinetto termico ad alte prestazioni Cuscinetto di raffreddamento termico in silicone morbido per	Costruzione e composizione::	Elastomero siliconico caricato con ceramica
Parole chiave:	Cuscinetto di raffreddamento termico in silicone	Durezza:	35 riva 00
Densità:	3.3 g/cm3	Conduttività termica:	5.0W/m-k
Colore:	grigio	Intervallo di spessore:	0,25~5,0 mm/(0,010~0,20 pollici)
Applicazione:	Raffreddamento dei processori AI

High Performance Thermal Pad Soft Silicone Thermal Cooling Pad For AI Processors Cooling

Products Description

TIF^®500-50-11E Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features:

> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives

> Good insulation performance
> Easy release construction
> Electrically isolating
> High durability

Applications:

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power

> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator

Typical Properties of TIF^®500-50-11E Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	9.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	5.0 W/m-K		ASTM D5470
	5.0 W/m-K		ISO22007

High Performance Thermal Pad Soft Silicone Thermal Cooling Pad For AI Processors Cooling 0

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
