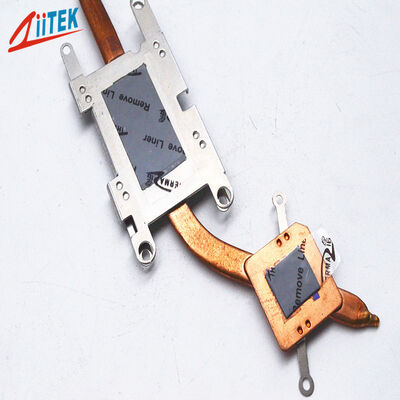

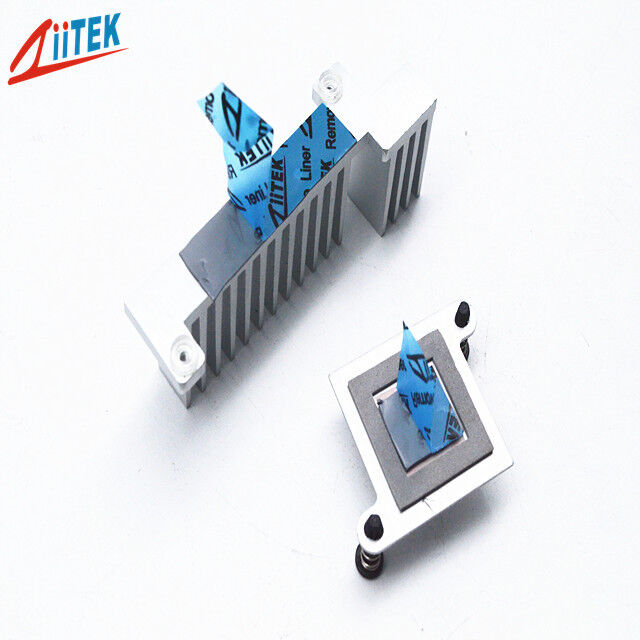

Name: Ultra Soft Thermally Conductive Gap Filler Pads Thermal Pads For Heat Pipe Thermal Solutions And AI Processors
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF500-30-11U
Price: 4.10 USD
Availability: InStock

Casa Prodotti cuscinetto del termale del silicone

Ultra Soft Thermally Conductive Gap Filler Pads Thermal Pads For Heat Pipe Thermal Solutions And AI Processors

Dettagli:

Luogo di origine:	Cina
Marca:	Ziitek
Certificazione:	UL & RoHS
Numero di modello:	TIF500-30-11U

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000 pezzi
Prezzo:	0.1-10 USD/PCS
Imballaggi particolari:	241312 cm cartoni
Tempi di consegna:	3-5 giorni lavorativi
Termini di pagamento:	T/T
Capacità di alimentazione:	1000000 pezzi/mese

Contatto

Descrizione di prodotto dettagliata

Nome dei prodotti:	Cuscinetti riempitivi per gap ultra morbidi termicamente conduttivi Cuscinetti termici per soluzioni	Parole chiave:	Cuscinetto termico
Densità:	3.1 g/cm3	Conducibilità termica:	3.0W/m-K
Applicazione:	Soluzioni termiche Heat Pipe e processori AI	Intervallo di spessore:	0,25~5,0 mm/(0,010~0,20 pollici)
colore:	Grigio scuro	Durezza:	65 riva 00

Ultra Soft Thermally Conductive Gap Filler Pads Thermal Pads For Heat Pipe Thermal Solutions And AI Processors

Products Description

TIF^®500-30-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features:

> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications:

> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator

Typical Properties of TIF^®500-30-11U Series
Property	Value		Test method
Color	Dark gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	27 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	3.0 W/m-K		ASTM D5470
	3.0 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Ultra Soft Thermally Conductive Gap Filler Pads Thermal Pads For Heat Pipe Thermal Solutions And AI Processors 0

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
