RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone Rubber High Conductive Thermal Pad For New Energy Vehicle

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone Rubber High Conductive Thermal Pad For New Energy Vehicle

Dettagli:
Luogo di origine: Cina
Marca: Ziitek
Certificazione: UL & RoHS
Numero di modello: Serie TIF100-10S
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000pcs
Prezzo: 0.1-10 USD/PCS
Imballaggi particolari: 24*13*12 cm cartoni
Tempi di consegna: 3-5 giorni di lavoro
Termini di pagamento: T/t
Capacità di alimentazione: 1000000 pezzi/mese
Contatto
Descrizione di prodotto dettagliata
Nome dei prodotti: Cuscinetto termico ad alta conduttività in gomma siliconica isolante con intercapedine di raffreddam Parole chiave: Cuscinetto termico
Campione: Campione gratuito Valutazione del fuoco: 94 V0
Colore: Grigio Conducibilità termica: 1,5 W/m-K
Costante dielettrica: 4.5MHz Tensione di rottura dielettrica: > 5500 VAC
Gamma di spessore: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) Applicazione: CPU GPU Semiconduttore Veicolo di nuova energia

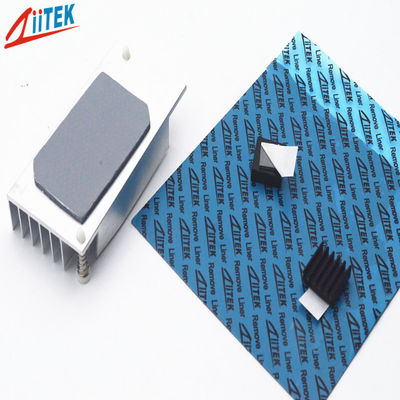

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone Rubber High Conductive Thermal Pad For New Energy Vehicle



Company Profile



Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.



Ziitek TIF®100-10S Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator

> Display card
> Mainboard/mother board
> Memory Modules
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power



Typical Properties of TIF®100-10S Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

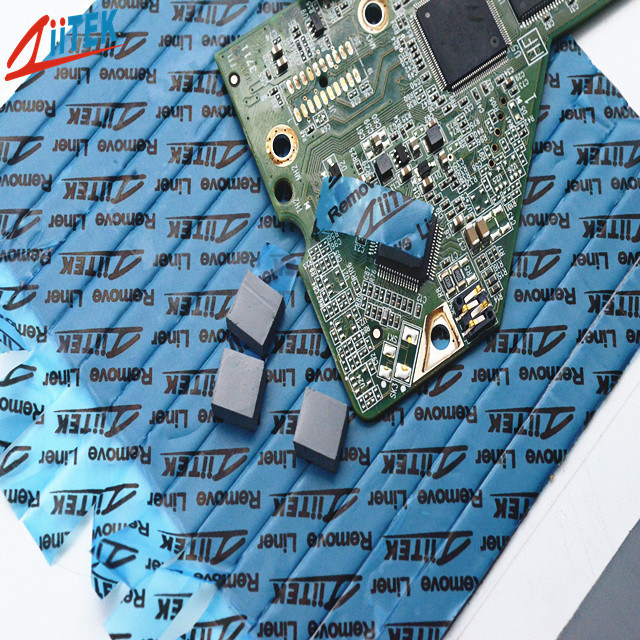

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone Rubber High Conductive Thermal Pad For New Energy Vehicle 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone Rubber High Conductive Thermal Pad For New Energy Vehicle 1
