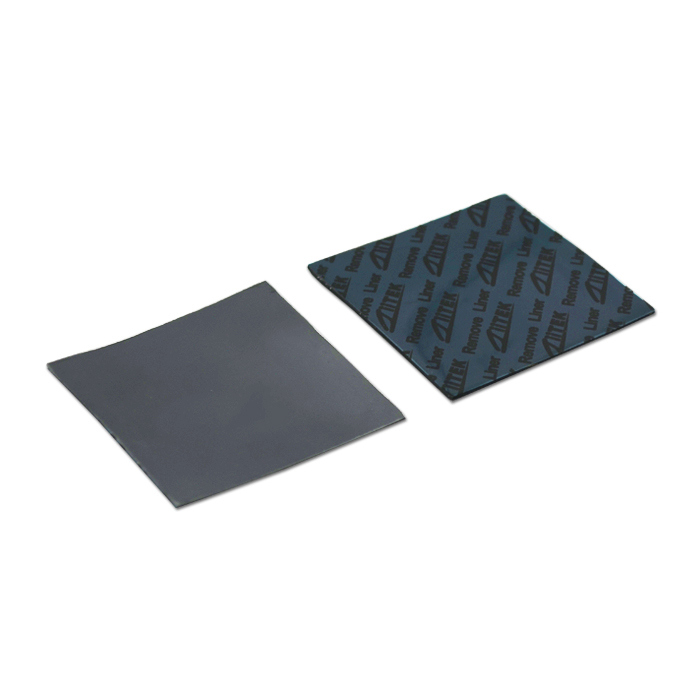

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units

Dettagli:
Luogo di origine: Cina
Marca: Ziitek
Certificazione: UL & RoHS
Numero di modello: Serie TIF100-01E
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000pcs
Prezzo: 0.1-10 USD/PCS
Imballaggi particolari: 24*13*12 cm cartoni
Tempi di consegna: 3-5 giorni di lavoro
Termini di pagamento: T/t
Capacità di alimentazione: 1000000 pezzi/mese
Contatto
Descrizione di prodotto dettagliata
Nome dei prodotti: OEM Dimensione personalizzata Terma conduttivo Terma Conduttivo Terma conduttivo PAD per unità di co Applicazione: Unità di controllo del motore per veicoli
Gamma di spessore: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) Costante dielettrica: 4,7 megahertz
Tensione di rottura dielettrica: > 5500 VAC Parole chiave: cuscinetto termico del silicone
Valutazione del fuoco: 94 V0 Conducibilità termica: 1,5 W/m-K
Colore: Nero

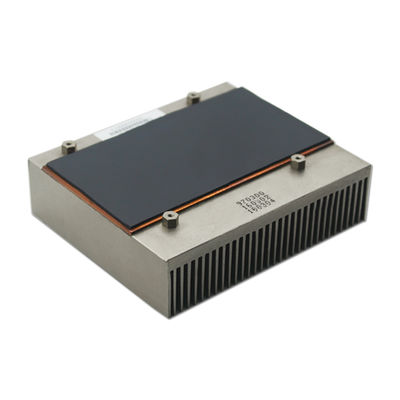

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units



Company Profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



The TIF®100-01E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.



Features


> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating


Applications


> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules

> Mass storage devices
> Automotive electronics
> Set top boxes



Typical Properties of TIF®100-01E Series
Property Value Test method
Color Black ******
Construction &Compostion Ceramic filled silicone elastomer ******
Specific Gravity 2.3 g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Thickness range 0.020"~0.200"(0.5mm~5.0mm) ASTM D374
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity 1.0X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing (TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
